Overview

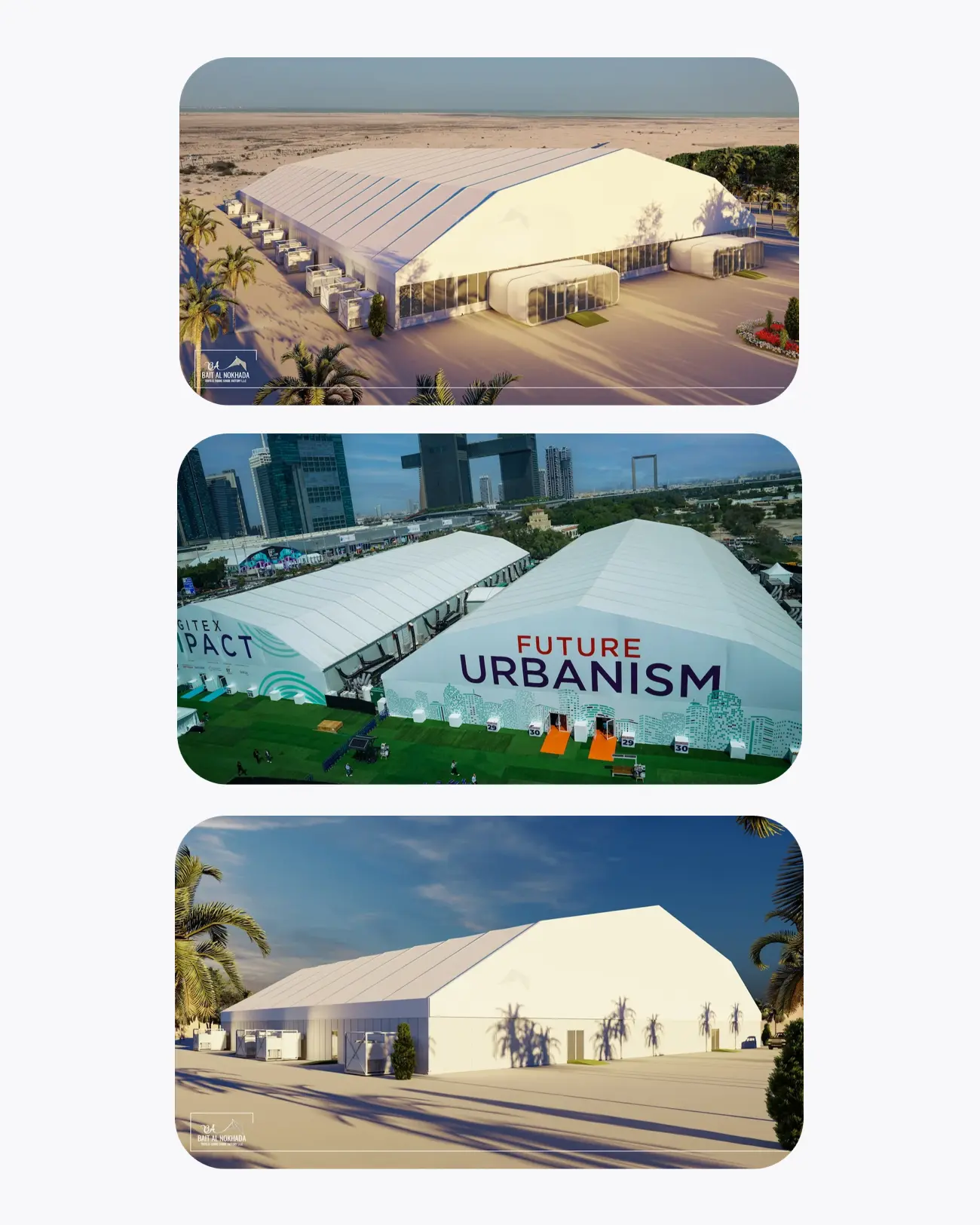

Polygon Tent - Premium Event Solutions
Overview
Our Polygon Tents represent the pinnacle of temporary structure engineering, combining elegant aesthetics with robust construction.
Superior Structural Design
Multi-faceted polygon shape offering optimal space utilization
Clear-span construction with no internal poles obstructing the interior
Modular bay system allowing flexible length configurations in 5-meter increments
Bar tension roof fixing system ensuring taut, professional appearance
Premium Materials
Heavy-duty aluminum alloy framework using 6082/T6 grade material
4-channel extruded aluminum profiles for maximum strength
PVC-coated polyester textile covering (850gsm or higher)
Hot-dip galvanized steel plates for enhanced durability
Aluminum male-female pin eave connections for secure assembly
Size Range
Available in widths from 15 to 60 meters:
15m wide: 4.25m eave height, 7.7m ridge height
20m wide: 4.25m eave height, 8.3m ridge height
25m wide: 4.25m eave height, 8.86m ridge height
30m wide: 4.25m eave height, 11.16m ridge height
40m wide: 4.25m or 6.32m eave height options
50m wide: 4.25m or 6.32m eave height options
60m wide: 5.46m eave height, 17m ridge height
Technical Specifications
Wind Resistance
Engineered to withstand 100km/hour wind loads
Complies with international safety standards
Hard-pressed extruded aluminum construction for superior strength
Modularity
Standard 5-meter bay distances for consistent structural integrity
Minimum tent length: 25 meters
Expandable in 5-meter increments to accommodate any event size
Longest component: 6.5 meters for efficient transportation
Connection System
Base plates compatible with HDG steel grade S355/S275
PVC-coated wire rope cable bracing system
Precision-engineered connector profiles ranging from 212x112x4mm to 450x125x10mm depending on tent width
